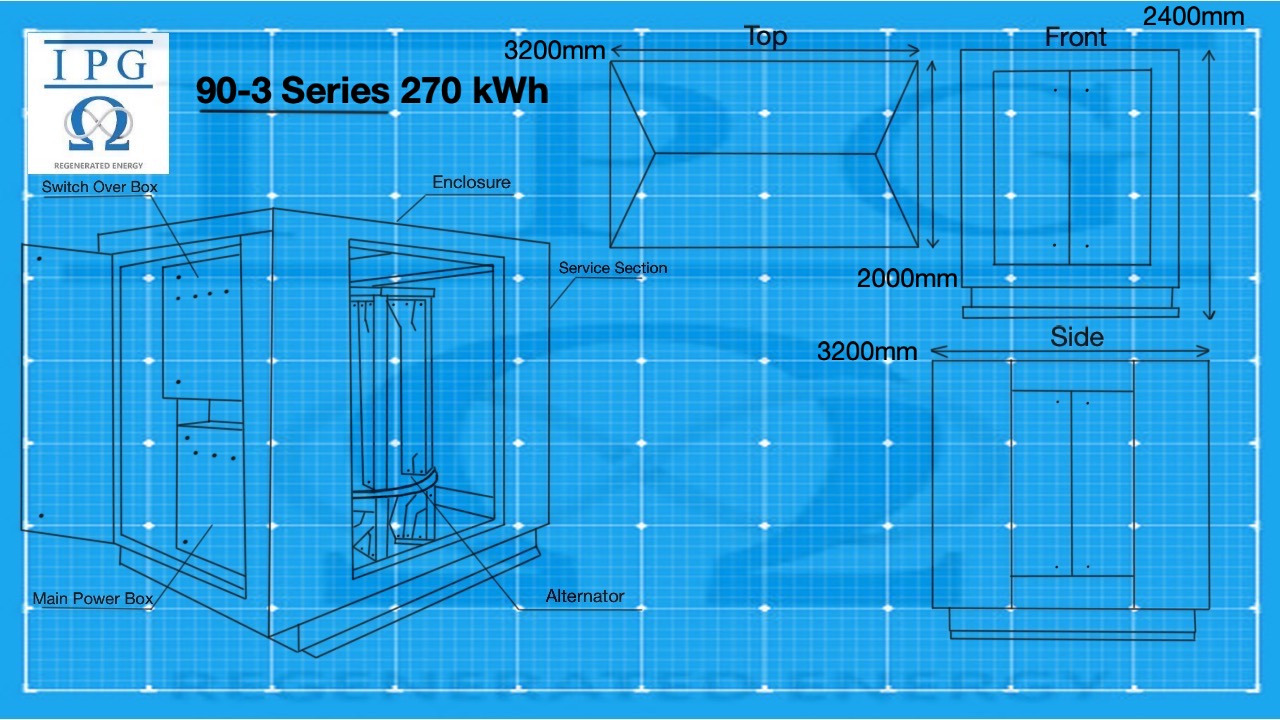

Macht85 90 -3 Series 270 kWh Power Supply Unit
Features & Benefits
- Maximum 270kW, 380/220V
- Alternator with AVR
- Steel base frame
- Modular design, silent
- Observation panel
- Compact
- Does not require any other external energy source to generate electricity.
- Can be installed and commissioned in a short time frame.
- Does not require an extensive logistic network, to keep it running.
- Can provide electricity to individual homes, communities, small to large businesses and towns. Cancelling out the requirements of large infrastructure development projects.
- A cost effective, off grid, power solution.
General Data
| Alternator brand: | Macht85 |
| Alternator model: | 270 Series |
| C.O. Power: | 270.0 kW |
| Connection: | Delta star |
| Phases: | Three phases with neutral |
| IP Protection: | 55. |
| Terminal Number: | 12. |
| Frequency (Hz): | 50 Hz |
| Voltage (V): | 380/220V |
| Amps (A): | 430/1290A |
| Width: | 2000 mm |
| Length: | 3200 mm |
| Height: | 2400 mm |
| Weight: | 5500 kgs |
| dBA @ 7m: | 50 |
* Specs and pricing subject to change without prior notice.
* Measurements based on ISO8528-1 Standards.
* Pictures may vary from actual product.
